'N' & 'T' Type Fuse Links
Bajeria type ‘N’ & ‘T’ fuse-links are for use in industrial installations to be fitted in fuse units. These fuses are in accordance to BS 88 and have the classification ‘gG’ ensuring compliance with the specification. The range has a rated voltage of 415 V AC.
With dimensions very much less than the BS 88 limits, the fuse-links are very small and light in weight, thus assisting cooling in installations and reducing the strain on fuse-switch mechanism. Power dissipation substantially below the standardized limits result in low temperature rise with additional benefit of energy saving through reduction in power losses.

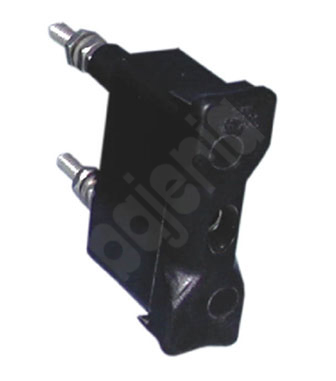

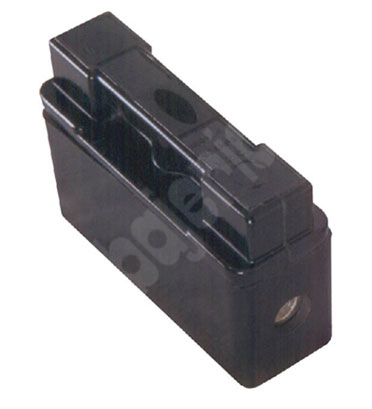

Fuse base for this range of fuses are also available.
BS 88 Ref. | List Ref | Current Rating In Amps (A) | Fixing Centres | |
(Inches) (mm) (Overall Length) |
||||
- | BINS | 2,4,6,10,16,20,25,32 | 2 3/8 | 60 |
A1 | BINIT | 2,4,6,10,16,20,25,32 | 1 3/4 | 44.5 |
A2 | BITIA | 2,4,6,10,16,20,25,32 | 2 7/8 | 73 |

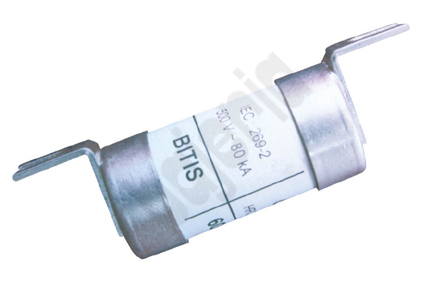

A3 | BITIS | 32,35,40,50,63 | 2 7/8 | 73 |

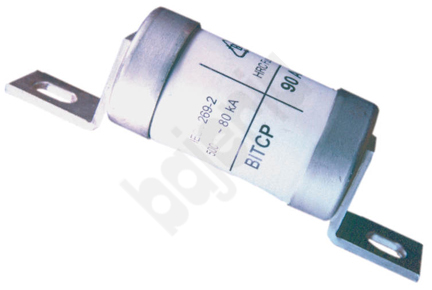

A4 | BITCP | 32,40,50,63,80,100 | 3 11/16 | 94 |
- | BITFP | 160,200 | 3 11/16 | 94 |
- | BITBC | 2,4,6,10,16,20,25,32,40,50,63 | 4 3/8 | 111 |
B1 | BITC | 80,100 | 4 3/8 | 111 |
B2 | BITF | 125,160,200 | 4 3/8 | 111 |
B3 | BITKF | 250,315 | 4 3/8 | 111 |
B4 | BITMF | 355,400 | 4 3/8 | 111 |
- | BITKM | 250,315 | 4 3/8 | 111 |
C1 | BITM | 355,400 | 5 1/4, 7 1/4 | 133, 184 |
C2 | BITTM | 450,500,560,630 | 5 1/4, 7 1/4 | 133, 184 |
